Brief Introduction

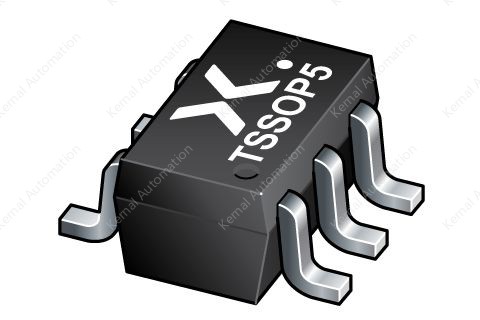

74AHC1G08GW

<p>The 74AHC1G08; 74AHCT1G08 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;• Wide supply voltage range from 2.0 to 5.5 V</p><p>• Overvoltage tolerant inputs to 5.5 V</p><p>• High noise immunity</p><p>• CMOS low power dissipation</p><p>• Latch-up performance exceeds 100 mA per JESD 78 Class II Level A</p><p>• Symmetrical output impedance</p><p>• Balanced propagation delays</p><p>• Input levels:</p><p>• For 74AHC1G08: CMOS level</p><p>• For 74AHCT1G08: TTL level</p><p>• ESD protection:</p><p>• HBM JESD22-A114E: exceeds 2000 V</p><p>• MM JESD22-A115-A: exceeds 200 V</p><p>• CDM JESD22-C101C: exceeds 1000 V</p><p>• Specified from -40 °C to +125 °C</p>
